Test name
endoaxi1
Calculation type
DAMAGE MODEL FOR ELASTOPLASTIC MATERIAL
Finite element type
QUA8
Topic
Tensile test on a damage elastoplastic material
The structure is an embedded test piece subjected to a
tensile stress (imposed displacements). The structure
obeys a law according to a damage elastoplastic model.
Goal
Test the model of damage material for MODE AXIS and
compare Castem's results with the analytical solution obtained
by algorithm.
We also compute:
The cumulated plastic strain (EPSE component in
VARIABLES_INTERNES).
The damage variable D in VARIABLES_INTERNES.
SIGMAzz (in CONTRAINTES).
Reference
Analytical solution.
Tests carried out by Mr STRUB (rapport DMT/91 .558).
Version
97' customer version
Model description
Test endoaxi1 Results

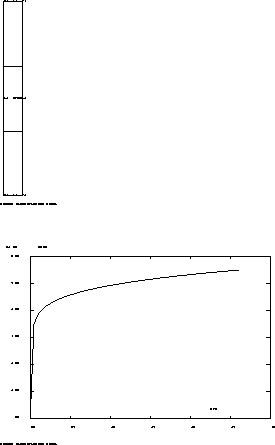

CASTEM FIGURES
* Test Endoaxi1.dgibi: Jeux de données *
* ------------------------------------ *
* *
*
complet = faux;
*
*************************************************
* pour calcul complet mettre complet à : vrai;
*************************************************
*******************************************************
* *
* TEST; MATERIAU ELASTO-PLASTIQUE ENDOMMAGEABLE *
* *
* EPROUVETTE EN TRACTION AVEC DEPLACEMENTS IMPOSES. *
* MAILLAGE AXISYMETRIQUE. *
* *
* LES RESULTATS OBTENUS SONT COMPARES A LA SOLUTION *
* ANALYTIQUE OBTENUE PAR ALGORITHME. *
* ON TESTE - LA DEFORMATION PLASTIQUE CUMULEE *
* (composante EPSE dans VARIABLES_INTERNES)*
* - D, LA VARIABLE D'ENDOMMAGEMENT *
* (DANS VARIABLES_INTERNES). *
* - SIGMAzz ( dans CONTRAINTES ). *
* *
* Test effectue par Mr STRUB (cf rapport DMT/91 .558).*
* Test modifie pour evolution 2/06/92. *
*******************************************************
GRAPH = 'N';
OPTI ECHO 1 DIME 2 ELEM QUA8 MODE AXIS;
opti trac bens;
*------------------------------------------------------
P1 = 0 0; P2 = 3E-3 0;
P3 = 3E-3 30E-3; P4 = 0 30E-3;
*
L1 = P1 P2 DROIT 1 ;
L2 = P2 P3 DROIT 3 ;
L3 = P3 P4 DROIT 1 ;
L4 = P4 P1 DROIT 3 ;
*
EPROU = L1 L2 L3 L4 DALLER PLAN ;
SI ( NEG GRAPH 'N');
trac eprou;
FINSI;
CL1 = BLOQ L1 UZ ;
CL2 = BLOQ L3 UZ ;
CL3 = BLOQ L4 UR ;
CL = CL1 ET CL2 ET CL3 ;
DEP = DEPI CL2 1E-3 ;
*
MO = MODL EPROU 'MECANIQUE' 'ELASTIQUE' 'PLASTIQUE'
'ENDOMMAGEABLE';
*
PROGEPS = PROG 0. .47285E-2 .76066E-2 .89226E-2
1.0533E-2 1.4011E-2 1.9096E-2 2.6081E-2 3.4654E-2
4.5828E-2 6.0813E-2 7.2835E-2 8.3328E-2 9.5526E-2
10.691E-2 11.808E-2 12.784E-2 13.891E-2 14.936E-2
15.700E-2 16.746E-2 17.720E-2 18.946E-2 19.860E-2
20.703E-2 21.607E-2 22.802E-2 23.685E-2 24.919E-2
26.083E-2 ;
PROGSIG = PROG 0. 350.E06 370.59E06 379.18E06
387.37E06 400.52E06 414.22E06 427.94E06 440.69E06
453.63E06 467.26E06 476.30E06 483.24E06 490.46E06
496.56E06 502.06E06 506.53E06 511.28E06 515.51E06
518.45E06 522.29E06 525.71E06 529.81E06 532.73E06
535.33E06 538.03E06 541.47E06 543.92E06 547.23E06
550.24E06 ;
CTRAC = EVOL MANU EPS PROGEPS TRAC PROGSIG ;
SI ( NEG GRAPH 'N');
DESS CTRAC;
FINSI;
MAT = MATR MO YOUN 74020.E06 NU 0.3 RHO 7800. ALPH 0.
TRAC CTRAC EPSD 0.03 DC 0.23 EPSR 0.25 ;
*
* LISTE DES PAS DE CALCUL :
* 0.13 MM INCREMENT ELASTIQUE
* 0.16 MM INCREMENT PLASTIQUE
si complet;
LIS = PROG 0.13 0.16
0.5 1. 1.25 1.5 2. 2.5 3. 3.5 4. 4.5
5. 5.5 6. 6.5 7. 7.5 8.;
sinon;
LIS = prog 0.13 0.16 0.5 ;
finsi;
*
LI1 = PROG 0. 30. ; LI2 = PROG 0. 30. ;
EV = EVOL MANU T LI1 DEP(T) LI2 ;
CHA = CHAR 'DIMP' DEP EV ;
TAB = TABLE ;
TAB.'BLOCAGES_MECANIQUES' = CL;
TAB.'CARACTERISTIQUES' = MAT;
TAB.'CHARGEMENT' = CHA;
TAB.'MODELE' = MO;
TAB.'TEMPS_CALCULES' = LIS;
TAB.'PRECISION' = 1E-08;
*
PASAPAS TAB ;
*******************************************************
*************** TEST DE FONCTIONNEMENT ***********
*******************************************************
dpc0 = extr TAB.VARIABLES_INTERNES.2 EPSE 1 1 1;
dpc1 = extr TAB.VARIABLES_INTERNES.3 EPSE 1 1 1;
dpc0t = 5.46e-4;dpc1t =1.12694E-02;
si complet;
dpc2 = extr TAB.VARIABLES_INTERNES.7 EPSE 1 1 1;
dpc4 = extr TAB.VARIABLES_INTERNES.11 EPSE 1 1 1;
dpc6 = extr TAB.VARIABLES_INTERNES.15 EPSE 1 1 1;
dpc75 =extr TAB.VARIABLES_INTERNES.18 EPSE 1 1 1;
dpc2t = 6.03e-2; dpc4t = 12.65e-2; dpc6t = 19.29e-2;
dpc75t = 24.27e-2;
finsi;
D0 = extr TAB.VARIABLES_INTERNES.2 'VHWD' 1 1 1;
D1 = extr TAB.VARIABLES_INTERNES.3 'VHWD' 1 1 1;
D0T = 0.; D1T= 0.0;
si complet;
D2 = extr TAB.VARIABLES_INTERNES.7 'VHWD' 1 1 1;
D4 = extr TAB.VARIABLES_INTERNES.11 'VHWD' 1 1 1;
D6 = extr TAB.VARIABLES_INTERNES.15 'VHWD' 1 1 1;
D75 = extr TAB.VARIABLES_INTERNES.18 'VHWD' 1 1 1;
D2T= 0.0257; D4T= 0.0901; D6T= 0.1622; D75T= 0.2199;
finsi;
SZZ0 = EXTR TAB.CONTRAINTES.2 SMZZ 1 1 1;
SZZ1 = EXTR TAB.CONTRAINTES.3 SMZZ 1 1 1;
SZZ0T = 354.3E6; SZZ1T = 4.07984E+08;
si complet;
SZZ2 = EXTR TAB.CONTRAINTES.7 SMZZ 1 1 1;
SZZ4 = EXTR TAB.CONTRAINTES.11 SMZZ 1 1 1;
SZZ6 = EXTR TAB.CONTRAINTES.15 SMZZ 1 1 1;
SZZ75 = EXTR TAB.CONTRAINTES.18 SMZZ 1 1 1;
SZZ2T = 459.3E6; SZZ4T = 461.4E6; SZZ6T = 443.3E6;
SZZ75T = 422.4E6;
finsi;
EDPC0 = ABS((DPC0-DPC0T)/DPC0T);
EDPC1 = ABS((DPC1-DPC1T)/DPC1T);
si complet;
EDPC2 = ABS((DPC2-DPC2T)/DPC2T);
EDPC4 = ABS((DPC4-DPC4T)/DPC4T);
EDPC6 = ABS((DPC6-DPC6T)/DPC6T);
EDPC75 = ABS((DPC75-DPC75T)/DPC75T);
finsi;
ED0 = ABS((D0-D0T)/(D0T+0.001));
ED1 = ABS((D1-D1T)/(D1T+0.001));
si complet;
ED2 = ABS((D2-D2T)/D2T);
ED4 = ABS((D4-D4T)/D4T);
ED6 = ABS((D6-D6T)/D6T);
ED75 = ABS((D75-D75T)/D75T);
finsi;
ESZZ0 = ABS((SZZ0-SZZ0T)/SZZ0T);
ESZZ1 = ABS((SZZ1-SZZ1T)/SZZ1T);
si complet;
ESZZ2 = ABS((SZZ2-SZZ2T)/SZZ2T);
ESZZ4 = ABS((SZZ4-SZZ4T)/SZZ4T);
ESZZ6 = ABS((SZZ6-SZZ6T)/SZZ6T);
ESZZ75 = ABS((SZZ75-SZZ75T)/SZZ75T);
finsi;
si complet;
LERR = PROG EDPC0 EDPC1 EDPC2 EDPC4 EDPC6 EDPC75 ED0
ED1 ED2 ED4 ED6 ED75
ESZZ0 ESZZ1 ESZZ2 ESZZ4 ESZZ6 ESZZ75;
sinon;
lerr = PROG EDPC0 EDPC1 ED0 ED1 ESZZ0 ESZZ1;
finsi;
list LERR;
ermax = maxi LERR;
LIST ermax;
temps;
SI ( ERMAX <EG 0.05 );
ERRE 0;
SINON;
ERRE 5;
FINSI;
FIN;
FIN;
